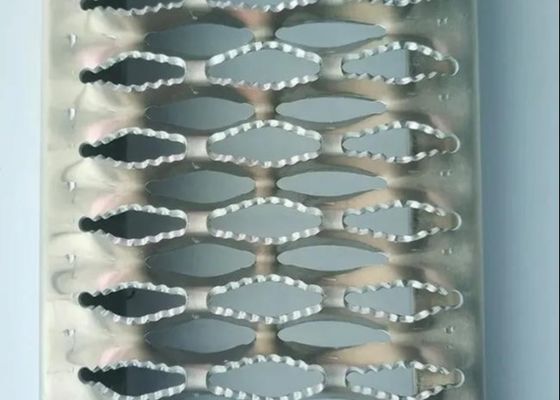

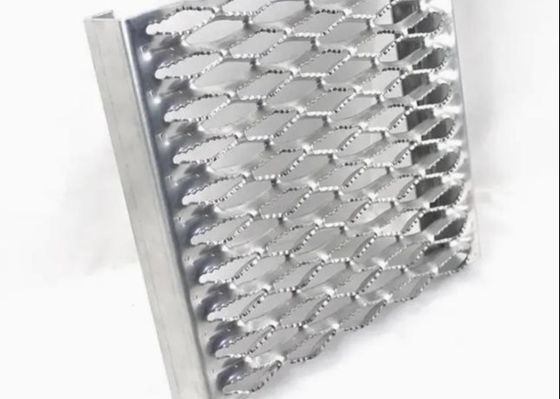

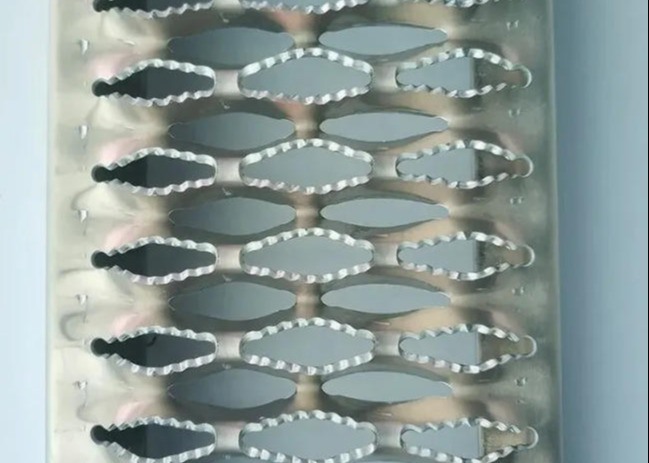

Crocodile mouth hole anti-skidwalkway/aluminum tread plate

Crocodile mouth hole anti-skidwalkway/aluminum tread plate

Μεγάλες Εικόνας :  Crocodile mouth hole anti-skidwalkway/aluminum tread plate

Λεπτομέρειες:
Τόπος καταγωγής: Hebei, Κίνα
Μάρκα: QIJIE
Πιστοποίηση: iso
Αριθμό μοντέλου: κιγκλίδωμα δοκών στέγης πιασιμάτων
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 100pcs
Συσκευασία λεπτομέρειες: Παλέτες
Χρόνος παράδοσης: 15-18 ημέρες
Όροι πληρωμής: 30%TT εκ των προτέρων, ισορροπία πριν από τη φόρτωση
Δυνατότητα προσφοράς: 1000pcs το μήνα
Λεπτομερής Περιγραφή Προϊόντος
Υλικό: Αργίλιο, γαλβανισμένο χαλύβδινο σύρμα Όνομα προϊόντων: κιγκλίδωμα δοκών στέγης πιασιμάτων
Τύπος: Διατρυπημένο πλέγμα, χαρακτική ή σφράγιση Τεχνική: διάτρητο
Ύφανση στυλ: διατρυπημένος, τρυπημένος με διατρητική μηχανή, Punching Σχήμα οπών: Κύκλος, διαμάντι, κ.λπ., άνθος δαμάσκηνων, οκτάγωνο
Επιφανειακή επεξεργασία: Επίστρωμα ψεκασμού/ζωγραφική ψεκασμού/Fluorocarbon επίστρωμα, καυτός που βυθίζονται γαλβανισμένος, π Χρώμα: Όλο το τσιπ χρώματος έχει, λευκό, μπλε, ασημένιος, χρυσό
Όνομα προϊόντος: εξαγωνικό διατρυπημένο φύλλο μετάλλων, εκτάσιμο πλέγμα sdiamond Πάχος: 0.58mm, 0.3MM 8MM
Χαρακτηριστικό: Αντίσταση διάβρωσης, καλή εμφάνιση και καλή ποιότητα, ανθεκτική, ανθεκτικότητα σε οξύ, αντι-αντοχή Πλάτος: 1m ή 1.22m, 1,22 μ ή κατωτέρω
Χρήση: κ.λπ., διακοσμητικό, φίλτρο πετρελαίου/αέρα, τρόφιμα Μήκος: 2m ή 2,44m
Μέγεθος: Προσαρμοσμένο μέγεθος, πρότυπο Σχήμα: το τετράγωνο, μπορεί να κοπεί στη στρογγυλή ή τετραγωνική μορφή, στρογγυλή μορφή, oval, Hexagon
Πίσσα: 1.0mm100MM, ή ως αίτημα. E-mail: devin@industrialmetalmesh.com
whatsapp: +8615369013183
Επισημαίνω:

crocodile mouth anti-skid walkway

,

aluminum tread plate grating

,

grip strut grating with holes

Crocodile mouth hole anti-skidwalkway/aluminum tread plate

Anti-slip gratings are manufactured as one-piece consructed channels with walking surfaces surfaces consisting of serrated edges on top of diamond shaped openings. The serrated surface is designed in an open diamond pattern. This allows drainage of fluids, mud, chips and other accident-causing debris. They can be cut or bending to any size and are ideal for wet or dry conditions where good slip resistance and traction are needed, adapt to different ground and anti-skid requirement.
We can produce full line of safety grating includes standard plank, stair treads, ladder rungs, walkway channels and flat sheet flooring for industrial applications and so on. Material:Steel,Aluminum,Stainless Steel

Pattern:Round type,Crocodile mouth type

 Crocodile mouth hole anti-skidwalkway/aluminum tread plate 0

Widths & Depths

Grip Strut planks are available in a broad range of widths and depths for various applications and load requirements.

Standard widths include:

  • 2 Diamond (4 ¾” wide)
  • 3 Diamond (7” wide)
  • 4 Diamond (9-1/2” wide)
  • 5 Diamond (11-3/4” wide)
  • 8 Diamond (18-3/4” wide)
  • 10 Diamond (24” wide)

Standard channel depths include 1-1/2”, 2”, 2-1/2”, and 3”.

Stock lengths of 10’ and 12’ are readily available and custom lengths are available on special order.

Materials

Grip Strut planks are available in the following materials:

  • Pre-galvanized steel, ASTM A924 G90, 14 or 12 gauge
  • HRPO uncoated steel, ASTM A1011, 14 or 12 gauge
  • 5052-H32 aluminum, ASTM B209, 12 gauge (.080) or 10 gauge (.100)
  • 304 or 316L stainless steel, 16 gauge
Crocodile mouth hole anti-skidwalkway/aluminum tread plate 1

Additional Grip Strut Products

In addition to plank grating, the distinct benefits of the Grip Strut surface are also available in OSHA compliant walkway channels, stair treads, ladder rungs, floor resurfacing materials, and Heavy Duty Grip Strut. For further details, please see related products below.



Application

1. The top wall of the building object can be used for the ceiling, filter plate and cavity plate.
2. Used for building
balconies, environmental tables and chairs.
3. Protective cover plate, punch net and round hole plate for mechanical
equipment
4. Used for grain, feed sieve plate, sieve sheet, microporous plate.
5. Used for the shelf mesh decoration of the shopping mall display table hole plate, porous plate, perforated plate.
Product Parameters
Structure
Plank thickness
Width
Channel height
Clear span


2-diamond
14G
4-3/4"
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'
12G
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'


3-diamond
14G
7"
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'
12G
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'


4-diamond
14G
9-1/2"
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'
12G
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'


5-diamond
14G
11-3/4"
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'
12G
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'

8-diamond
14G
18-3/4"
2"
2'; 2'-6"; 3'; 4'
12G
2"
2'; 2'-6"; 3'; 4'

10-diamond
14G
24"
2"
2'; 2'-6"; 3'; 4'
12G
2"
2'; 2'-6"; 3'; 4'

Crocodile mouth hole anti-skidwalkway/aluminum tread plate 2

Crocodile mouth hole anti-skidwalkway/aluminum tread plate 3
