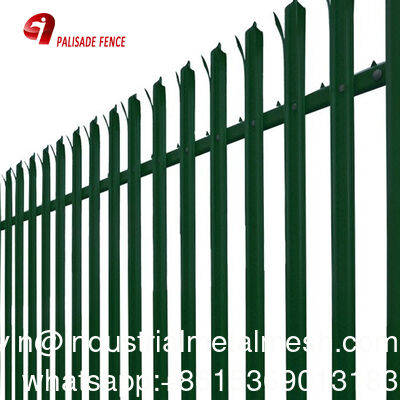

Metal Palisade Fence D and W Shape Palisade Security Fence System

Metal Palisade Fence D and W Shape Palisade Security Fence System

Μεγάλες Εικόνας :  Metal Palisade Fence D and W Shape Palisade Security Fence System

Λεπτομέρειες:
Τόπος καταγωγής: Hebei, Κίνα
Μάρκα: XMESH
Πιστοποίηση: SGS
Αριθμό μοντέλου: Περίφραξη Palisade
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 200 τεμ
Συσκευασία λεπτομέρειες: Παλέτες
Χρόνος παράδοσης: 15-25 ημέρες
Όροι πληρωμής: TT,LC,
Δυνατότητα προσφοράς: 1000 τεμάχια
Λεπτομερής Περιγραφή Προϊόντος
Μέγεθος: 2400 H x 2300 L Επεξεργασία Επιφανειών: Γαλβανισμένο
Μέγεθος ανάρτησης IPE: 100x55mm Χλωμιάζει: Το τμήμα W
Τύπος: Φράχτες, πύλες και πύλες, προφίλ προστατευτικού πλέγματος ή προφίλ στερέωσης Χαρακτηριστικό: Συναρμολογείται εύκολα, φιλικό προς το περιβάλλον, αδιάβροχο, ανθεκτικό στη σήψη, ανθεκτικό στα τρωκ
Τύπος μετάλλου: Σίδηρος,χάλυβας,σιδήρος ή επικαλυμμένο Φινίρισμα πλαισίου: Επικάλυψη από PVC, Επικάλυψη από σκόνη, ανωδική
Υλικό πλαισίου: Μέταλλο Τύπος ξύλου επεξεργασμένο με πίεση: Θερμική επεξεργασία, φύση
Χρώμα: άσπρος, μαύρος, πράσινος, μπλε, κόκκινος Επεξεργασία Επιφανειών: Ζυγισμένα + ΠΕΠΚ επικαλυμμένα, Ηλεκτρικά\ Ζεστά Ζυγισμένα + ΠΕΠΚ\ Πυροποιημένα
Εφαρμογή: Φράχτης, Χρησιμοποιείται, Κήπος, Σπίτι Χρήση: Προστασία, διακόσμηση κήπων, κτήριο, φράκτης κήπων/εθνική οδός/αερολιμένας
E-mail: devin@industrialmetalmesh.com whatsapp: +8615369013183
Επισημαίνω:

D shape palisade security fence

,

W shape metal fence panels

,

palisade wire mesh fence system

Metal Palisade Fence D and W Shape Palisade Security Fence System



High Security Palisade Fencing is a high spec security fencing it is designed to provide a formidable barrier against intrusion and theft. It is manufactured using hot-formed and cold-rolled substantial steel sections. It is a cost effective way to providing a high level of security to the boundary line of any property.

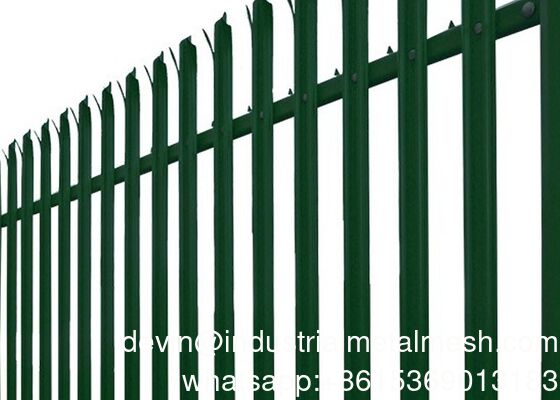

Metal Palisade Fence D and W Shape Palisade Security Fence System 0

Specifications of security palisade fence:


  • Material: Steel Q195, Q235, Q355.
  • Composition: pale, rail, post, and fittings
  • Pale:W pale, D pale, angle steel pale.
  • Rails:Angle steel rails, U shape rails.
  • Post: H post, Square Post

1.Instruction Of Pales Section:
------Corrugated "W"section1.5- 3.0 mm thickness, corrugated "D"section 1.5-3.9 mm thickness.
------Corrugated "D" section is used for medium and low security palisade fencing.
------"Angle Steel " palisade fence as normal will use the 3.0-5.0mm thickness steel.

palisade fence-PF001



Steel Palisade Fencing Specification.
High Security Palisade Fencing Specification.

Height

Post Dimensions

Rail Dimensions

Support Legs

Corrugated Steel Palisades

1.2m

102x44 or 100x55

40x40x6mm

1

W - 2.0mm or D - 3.0mm

1.5m

102x44 or 100x55

40x40x6mm

1

W - 2.0mm or D - 3.0mm

1.8m

102x44 or 100x55

40x40x6mm

1

W - 2.0mm or D - 3.0mm

2.0m

102x44 or 100x55

45x45x6mm

1

W - 2.0mm or D - 3.0mm

2.1m

102x44 or 100x55

45x45x6mm

1

W - 2.0mm or D - 3.0mm

2.4m

102x44 or 100x55

45x45x6mm

1

W - 2.0mm or D - 3.0mm

2.7m

102x44 or 100x55

50x50x6mm

1

W - 2.0mm or D - 3.0mm

3.0m

127x76

50x50x6mm

2

W - 2.5mm or D - 3.5mm

3.6m

127x76

50x50x6mm

2

W - 2.5mm or D - 3.5mm

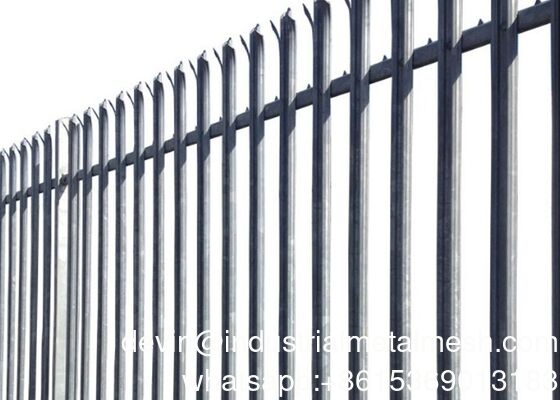

Metal Palisade Fence D and W Shape Palisade Security Fence System 1


Advantage of this hot dipped steel palisade fence:
1.Fence is using powder coating method,no rust,no flake off,no color fading,bright lastly and stable in color.
2.Easy assembly design makes installation more simple and quick.
3.Four layer anti corrosive treatment and more than twenty years service life fundamentally saves the cost.
4.Our security fencing is made of heavy duty steel that makes cutting the fence line near impossible. Your clients
can rest easy knowing that their garrison fencing will provide the protection needed for their properties.
5.To prevent corrosion our security fencing is fitted with steel caps. Unlike plastic caps, steel caps do not split over time.

Our steel palisade fence Features Include:
1.All pre - galvanised materials used.
2.All materials include high quality powder-coating.
3.14g Black powder coated tek screws or the option of upgrading to anti-vandal fixings.
4.4-hole rail brackets for additional strength for security fencing.
5.A complete range of accessories available. All powder coated to match the panels.

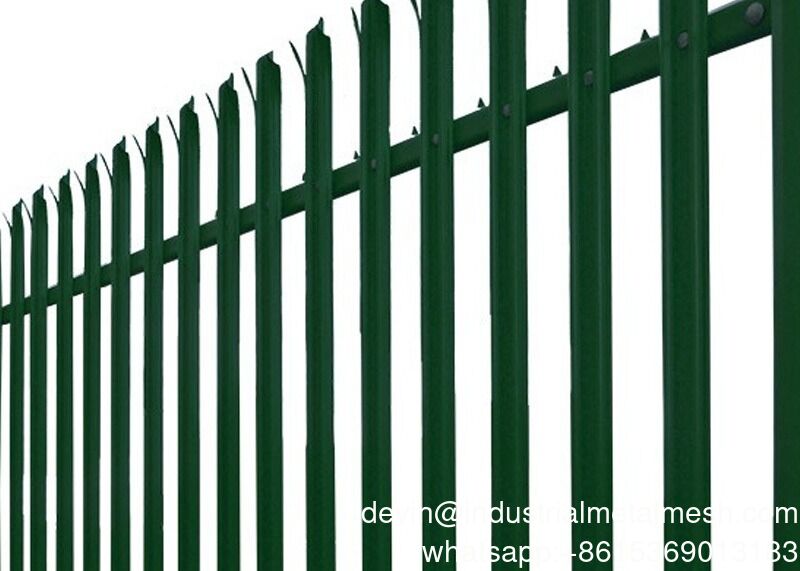

Metal Palisade Fence D and W Shape Palisade Security Fence System 2
High Security Palisade Fencing application.

Common uses include railway and track protection, schools, colleges and universities, research laboratories, motorways and highways protection, utility companies protection and around industrial sites.




Metal Palisade Fence D and W Shape Palisade Security Fence System 3
W Profile Galvanized Palisade Fencing-001
Metal Palisade Fence D and W Shape Palisade Security Fence System 4
W Profile Galvanized Palisade Fencing-002
Metal Palisade Fence D and W Shape Palisade Security Fence System 5
W Profile Galvanized Palisade Fencing-003

Metal Palisade Fence D and W Shape Palisade Security Fence System 6
