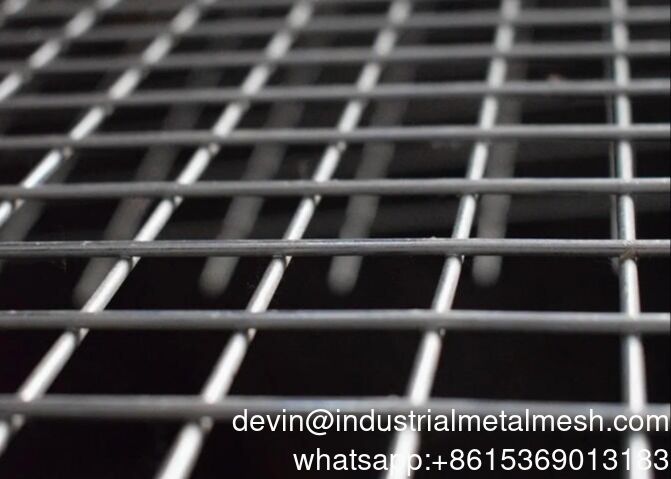

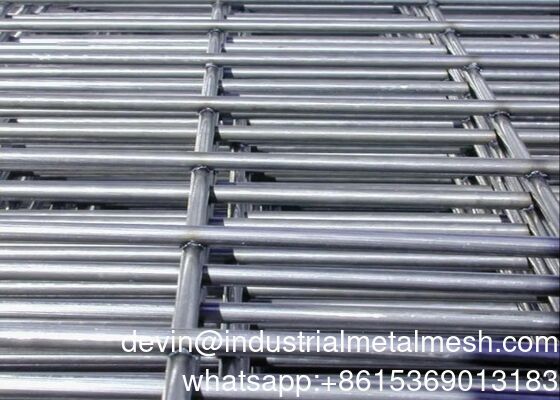

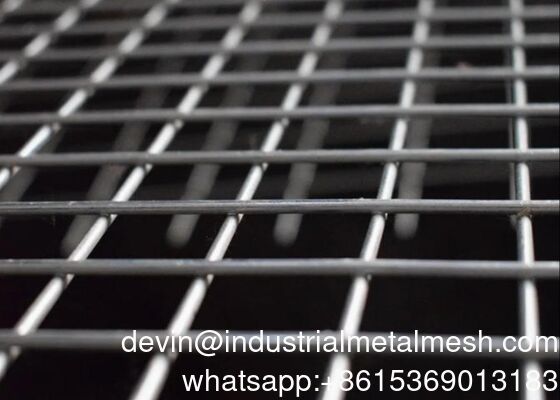

Steel Mesh Panel Welded Wire Mesh Stainless Black

Steel Mesh Panel Welded Wire Mesh Stainless Black
Steel Mesh Panel Welded Wire Mesh Stainless Black Steel Mesh Panel Welded Wire Mesh Stainless Black

Μεγάλες Εικόνας :  Steel Mesh Panel Welded Wire Mesh Stainless Black

Λεπτομέρειες:
Τόπος καταγωγής: Κίνα
Μάρκα: QiJie
Πιστοποίηση: ISO9001:2008, SGS, CE
Αριθμό μοντέλου: 01WWM
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 50 ρολά
Τιμή: USD9.90-USD45.90
Συσκευασία λεπτομέρειες: Πλαστική μεμβράνη ή αδιάβροχο χαρτί
Χρόνος παράδοσης: 10-25 ημέρες
Όροι πληρωμής: TT,LC,
Δυνατότητα προσφοράς: 1000 ρολά/ανά ημέρα
Λεπτομερής Περιγραφή Προϊόντος
Υλικό: Σύρμα από ανθρακούχο χάλυβα Άνοιγμα πλέγματος: 12 × 12, 20 × 20, 25 × 25, 12 × 25 χιλιοστά
Διάμετρος σύρματος: 0,4mm - 1,5mm Πλάτος ρολού: 0,4 m, 0,5 m, 0,6 m, 0,8 m, 1,0 m, 1,25 m, 1,5 m, 2,0 m
Μήκος ρολού: 15M,30M,50M κ.λπ Επεξεργασία Επιφανειών: Γαλβανισμένο εν θερμώ ή ηλεκτρικό γαλβανισμένο
Αριθμό μοντέλου: xx-01001 Εφαρμογή:: Πλέγμα φράχτη
E-mail: devin@industrialmetalmesh.com whatsapp: +8615369013183
Επισημαίνω:

stainless steel welded wire mesh

,

black steel mesh panel

,

welded wire mesh panel



Steel Mesh Panel Welded Wire Mesh Stainless Black​

Product Description:

Welded wire mesh is made of low carbon steel wire, which has galvanized and PVC-coated surfaces, which have great anti-corrosion, anti-rust, and weather resistance. Firm structure and high tensile strength are also the features of welded wire mesh, which makes it widely used to make gabion, plaster walls, animal cages, and plant trellis.
Welded wire mesh can be divided into 2 types according to different applications: welded mesh panel and welded mesh roll, and welded mesh roll has better flexibility. We support customization of other requirements.
The core advantages of welded wire mesh are high strength, corrosion resistance, convenient installation, beautiful and practical, which can not only meet functional requirements, but also adapt to diverse scenarios. Choosing different treatment processes (such as zinc plating, stainless steel, plastic coating) and mesh density according to specific uses can maximize its value.
They are usually made of horizontal and vertical steel bars or wires and the welding points are usually fixed by resistance welding or arc welding to form a grid structure with certain strength and rigidity. Welded mesh panel is widely used, such as machinery, fences, guardrails, etc.

 - Hot-dipped Galvanized Welded Wire Mesh (HDG)
Hot-dipped galvanized welded wire mesh is produced from low carbon steel wire such as Q195 or Q235, with zinc coating applied after welding.
This process provides a thicker zinc layer and stronger corrosion resistance, making it suitable for long-term outdoor use, fencing systems, and harsh environments.

- Electro Galvanized Welded Wire Mesh (EG)
Electro galvanized welded wire mesh is made from low carbon steel wire, typically Q195, with zinc coating applied by electroplating.
It features a smooth and bright surface with basic rust protection, suitable for indoor use or light outdoor applications.

- PVC Coated Welded Wire Mesh
PVC coated welded wire mesh is manufactured from galvanized welded mesh and then coated with PVC.
The PVC layer provides additional corrosion resistance, color options, and longer service life, commonly used for garden fencing, poultry enclosures, and decorative fencing.

- Stainless Steel Welded Wire Mesh
Stainless steel welded wire mesh is produced from 304 or 316 stainless steel wire, offering excellent corrosion resistance, strength, and hygiene performance.
It is suitable for industrial, food-related, chemical, and high-end applications.

Specification List of Welded Wire Mesh
Opening
In metric unit(mm)
Wire Diameter<BWG>
1/4" x 1/4"
6.4mm x 6.4mm
22,23,24
3/8" x 3/8"
10.6mm x 10.6mm
19,20,21,22
1/2" x 1/2"
12.7mm x 12.7mm
16,17,18,19,20,21,22,23
5/8" x 5/8"
16mm x 16mm
18,19,20,21,
3/4" x 3/4"
19.1mm x 19.1mm
16,17,18,19,20,21
1" x 1/2"
25.4mm x 12.7mm
16,17,18,19,20,21
1" x 2"
25.4mm x 50.8mm
14,15,16
2" x 2"
50.8mm x 50.8mm
12,13,14,15,16
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.


 Steel Mesh Panel Welded Wire Mesh Stainless Black 0

Transparency here reduces post-purchase inquiries. List package contents (e.g., product, USB-C cable, multilingual manual, warranty card) and highlight sustainable packaging (e.g., "100% recyclable materials"). Clarify shipping timelines by region (e.g., "EU: 5–7 business days," "APAC: 10–15 business days") and costs (e.g., "Free shipping on orders over $50"). State customs/duty responsibilities (e.g., "Duties calculated at checkout") and offer damage protection (e.g., "Free replacements for shipping-damaged items"). Add tracking instructions or icons (e.g.,) for clarity.



The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.



Characteristics of stainless steel 304D

1. Corrosion resistance. Uniform corrosion resistance in dilute hydrochloric acid, dilute sulfuric acid, acetic acid + salt and other environments is far better than 304 material

2. High strength and high wear resistance. The yield strength is 1.3 times or more than 304, and the elongation is not less than 45%.

3. Good welding performance, the strength after welding is higher than 304 material

4.Flame Retardant and safe


Welded wire mesh is designed to provide structural strength, dimensional accuracy, and long service life. The welding process ensures each intersection is firmly bonded, resulting in a rigid mesh that maintains its shape under load and during installation.

Compared with woven wire mesh, welded wire mesh offers higher rigidity and easier installation, making it suitable for large-area applications and standardized construction projects.

- Strong welded intersections ensure stable structure
- Uniform mesh opening for consistent performance
- Flat surface, easy to cut, bend, and install
- Available in rolls or panels for different applications
- Suitable for various surface treatments and environments


Steel Mesh Panel Welded Wire Mesh Stainless Black 1

Guarantee
1.We guarantee our customers will get right material and sizes,enough weight,on time delivery at our best service and price
2.The goods can be returned or compensated if the quality is not ok
3.There is no "cheat" and "misunderstanding" in Maishi

Packing

To well protect the meshes, usually we wrap the mesh with plastic film, or waterproof paper.
Sometimes if the customer request, we will wrap another layer of shrink film outside of the waterproof paper.
Then meshes will be load onto pallets or containers.

Payment term
1)100%T/T in advance if order amount less than USD10000.00
2) 30% paid in advance and 70% balance paid before shipment if order amount more than USD10000.00.
3) Irrevocable L/C at sight.
Any other payment term can be negotiable



Applications:
Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.


Steel Mesh Panel Welded Wire Mesh Stainless Black 2 Steel Mesh Panel Welded Wire Mesh Stainless Black 3

Steel Mesh Panel Welded Wire Mesh Stainless Black 4 Steel Mesh Panel Welded Wire Mesh Stainless Black 5

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
