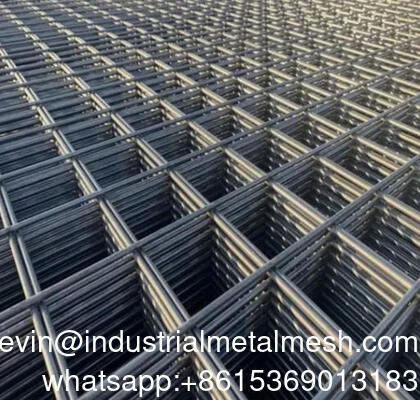

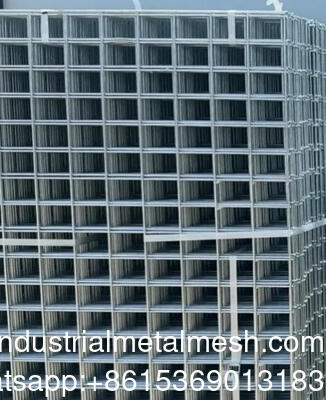

Welded Wire Mesh Panels 1.2X2.4m Galvanised 4X8FT Steel Sheet Metal 2" Holes

Welded Wire Mesh Panels 1.2X2.4m Galvanised 4X8FT Steel Sheet Metal 2" Holes

Product Description:



The following are some specifications that we often export, for you reference only, if you have special requirements, we can do as your customized, we will have professional designers to provide you with the most satisfactory style.

Opening		Wire diameter		Material
Inch	mm	BWG	mm	Black wire Electro galvanized wire before weldedElectro galvanized wire after welded Electro galvanized wire before welded Electro galvanized wire after welded PVC coated Powder coated
1" × 1"	25mmx25mm	14# - 11#	2.0mm - 3mm
2" × 1"	50mmx25mm	14# - 8#	2.0mm - 4mm
2" × 2"	50mmx50mm	14# - 8#	2.0mm - 4mm
3" × 2"	75mmx50mm	14# - 6#	2.0mm - 5mm
3" × 3"	75mmx75mm	14# - 6#	2.0mm - 5mm
4" × 2"	100mmx50mm	14# - 4#	2.0mm - 6mm
4" × 4"	100mmx100mm	14# - 4#	2.0mm - 6mm
5" × 5"	125mmx125mm	14# - 4#	2.0mm - 6mm
6" × 6"	150mmx150mm	14# - 4#	2.0mm - 6mm
Note: Special size and specifications can be made according to customers requires.



Material	Low carbon steel wire, galvanized wire, stainless steel wire, aluminum-magnesium alloy wire
Process	Welded after galvanized and galvanized after welding
Mesh	25*25mm, 50*50mm, 1*1, 2*2inch, 3*3inch, 75mm x 150mm, etc
Size	4*8FT, 1*2M, 1800mm x 3000mm(or we can make as customer request)
PVCCoating Thickness	0.5mm ~ 1.0mm
Packing	Bare or pallet

Product Name	welded wire mesh panel
Wire diameter	3mm 4mm 4.8mm 5mm 6mm,8mm or as your requirement
Mesh size	75x75mm, 50x50mm 100x100mm, 120x120mm,150x150mm or as your request
Panel size	1x2m, 1.5 x2.2m, 2.2x5.8m, 2.4mx6m or as your request
Surface treatment	hot dip galvanized before/after welded, electrio galvanized before/ after welded, pvc coated and powder coated
Applications	Wire Fencing And Building Material





Product Name	Welded Wire Mesh
Material	Low carbon steel wire, Galvanized wire,Stainless Steel Wire ,Alloy wire
Surface Treatment	Hot galvanized, Electro Glanized,Pvc Coated
Wire Diameter	0.5mm-8mm
Hole Size	1/4" 1/2" 3/4" 1" 2" 3" 4" special hole can be customized
Width	0.5-3m
Length	commen 30m, or according to your request
Packaging	Waterproof paper or plastic film in bulk or ballet
Delivery time	10-30 days indeed time according to the quantity
Samples	valid



1. Corrosion resistance. Uniform corrosion resistance in dilute hydrochloric acid, dilute sulfuric acid, acetic acid + salt and other environments is far better than 304 materialCharacteristics of stainless steel 304D

2. High strength and high wear resistance. The yield strength is 1.3 times or more than 304, and the elongation is not less than 45%.

3. Good welding performance, the strength after welding is higher than 304 material

4.Flame Retardant and safe



Key Applications:
Security cages, Fence reinforcement, Pet enclosures, Aviaries, Small animal hutches, Rabbit runs, Pond cover/ protection, and Garden fencing.

Key Features:
Galvanized wire protects the steel from rust and improves the longevity of the panel.
Easy to cut and bend the wire panels using wire cutters.
Can be bent and manipulated to fit structures.
Ideal for fencing, animal cages, aviaries, and more.



Guarantee
1.We guarantee our customers will get right material and sizes,enough weight,on time delivery at our best service and price
2.The goods can be returned or compensated if the quality is not ok
3.There is no "cheat" and "misunderstanding" in Maishi

Packing

To well protect the meshes, usually we wrap the mesh with plastic film, or waterproof paper.
Sometimes if the customer request, we will wrap another layer of shrink film outside of the waterproof paper.
Then meshes will be load onto pallets or containers.

Payment term
1)100%T/T in advance if order amount less than USD10000.00
2) 30% paid in advance and 70% balance paid before shipment if order amount more than USD10000.00.
3) Irrevocable L/C at sight.
Any other payment term can be negotiable

Applications:
Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.




Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
